Introduction: Unlocking the Potential of Solar Energy Through Optical and Thermal Analysis
Did you know that solar energy reaching the Earth’s surface in just one hour could meet global energy demands for an entire year? Yet, the challenge lies in efficiently capturing and converting this energy into usable heat. Solar collectors serve as the bridge between sunlight and thermal energy, but how well they perform depends on precise optical and thermal analysis. By leveraging advanced simulations, engineers can optimize collector designs to enhance efficiency, reduce energy losses, and adapt to varying environmental conditions.
Keywords:
Solar energy optimization, Optical and thermal analysis, Solar collector performance, Ray tracing for solar collectors, Heat transfer simulation, Renewable energy efficiency, Solar thermal modeling, Computational fluid dynamics for solar collectors, CPC solar collectors
Solar energy system validation.
Step 1: Optical Analysis – Tracing the Path of Sunlight for Maximum Efficiency
Efficient solar energy conversion starts with understanding how sunlight interacts with a solar collector. Optical analysis plays a crucial role in optimizing this interaction by simulating the path of solar rays and determining how much energy reaches the absorber.
How is Optical Analysis Performed?
To analyze the optical performance of a solar collector, engineers use ray-tracing simulations, which allow them to predict how light behaves when passing through different materials and geometries.
Key Steps in Optical Analysis:
1.Ray-Tracing Simulation:
- Specialized software like SolTrace is used to track solar rays through the system.
- The model accounts for collector shape, material properties, and incident angles to determine efficiency.
2.Energy Flux Mapping:
- The simulation generates a solar energy flux distribution map, which shows the intensity of sunlight reaching the absorber.
- This data serves as the foundation for the next step—thermal analysis.
Why is Optical Analysis Powerful?
- Visualizes and Quantifies Energy Distribution: Engineers can see precisely how light interacts with reflectors and absorbers.
- Optimizes Collector Design: Helps compare different collector types, such as Compound Parabolic Collectors (CPCs), flat-plate, and parabolic troughs.
- Enhances Efficiency: Enables fine-tuning of reflector materials, surface coatings, and receiver positioning to capture the most sunlight.
Case Study: Optical Performance of a Compound Parabolic Collector (CPC) Under Varying Sunlight Angles
One practical application of optical analysis is evaluating the performance of Compound Parabolic Collectors (CPCs) under different sunlight angles. Since the effectiveness of solar collectors is highly dependent on the angle of incoming sunlight, understanding how much solar energy is captured at different times of the day is critical for optimizing real-world efficiency.
Objective:
To analyze the optical efficiency of Compound Parabolic Collectors (CPCs) under different sunlight incidence angles and compare the performance of a cylindrical receiver vs. a flat receiver using ray-tracing simulations and heat flux mapping.
Methodology:
1.Ray-Tracing Analysis:
- Simulated sunlight paths using SolTrace to determine how rays interact with the CPC’s reflectors.
- Evaluated how effectively light is redirected onto the absorber at both normal and inclined sun angles.
2.Heat Flux Mapping:
- Generated energy distribution maps to measure how concentrated sunlight reaches different parts of the receiver.
- Compared illumination patterns on a cylindrical receiver vs. a flat receiver under varying conditions.
Why is Optical Analysis Powerful?
- Visualizes and Quantifies Energy Distribution: Engineers can see precisely how light interacts with reflectors and absorbers.
- Optimizes Collector Design: Helps compare different collector types, such as Compound Parabolic Collectors (CPCs), flat-plate, and parabolic troughs.
- Enhances Efficiency: Enables fine-tuning of reflector materials, surface coatings, and receiver positioning to capture the most sunlight.
The leftmost diagram illustrates how incoming solar rays are redirected by the CPC reflectors toward the focal region where the absorber is positioned. The middle figures show ray-tracing simulations for different CPC configurations:
- Top row: CPC with a cylindrical receiver, where most rays converge efficiently onto the absorber, resulting in even energy distribution.
- Bottom row: CPC with a flat receiver, where inclined rays illuminate the edge rather than uniformly distributing energy across the absorber.
The rightmost images display heat flux maps of the absorber surface under both configurations. The cylindrical receiver exhibits a centralized and evenly distributed heat flux, whereas the flat receiver shows higher concentration near the edges, leading to potential efficiency losses due to uneven heating.
This analysis highlights the importance of receiver geometry in maximizing optical efficiency and optimizing heat absorption in CPC-based solar collectors.
Step 2: Thermal Analysis – Converting Solar Energy into Usable Heat
After determining how effectively sunlight is captured using optical analysis, the next crucial step is to evaluate how well the absorbed energy is converted into heat and transferred to the working fluid. This is where thermal analysis plays a pivotal role. By employing heat transfer modeling techniques, engineers can analyze how efficiently the collector retains and distributes heat, identify potential losses, and optimize materials and configurations for maximum thermal performance.
How is Thermal Analysis Performed?
Thermal analysis involves solving heat transfer equations to assess how energy moves through the system. The primary goal is to ensure that the solar collector operates efficiently and effectively, minimizing heat losses while maximizing thermal absorption.
Key Steps in Thermal Analysis:
1.Energy Balance Equations:
- The solar collector is modeled using conduction, convection, and radiation heat transfer principles.
- Governing equations define how heat is absorbed, transferred, and lost within the system.
2.Finite Volume and Finite Element Simulations:
- Computational methods like the Finite Volume Method (FVM) or Finite Element Analysis (FEA) are employed to solve heat transfer equations.
- Simulations provide a temperature distribution map of the collector, revealing hot spots, inefficiencies, and thermal losses.
3.Material and Configuration Optimization:
- Different coatings, insulation materials, and absorber geometries are tested to find the most thermally efficient design.
- Heat flux maps help visualize where energy is concentrated and lost.
Why is Thermal Analysis Essential?
- Optimizes Thermal Performance: Helps improve the absorber’s heat retention capacity by selecting the best materials and configurations.
- Enhances Efficiency: Identifies heat loss mechanisms, such as convection to the surrounding air, allowing engineers to implement insulation strategies.
- Predicts Real-World Performance: Can be coupled with weather data to forecast system efficiency across different seasons.
By combining optical analysis with thermal simulations, engineers can ensure that not only is sunlight captured efficiently, but it is also converted into usable heat with minimal losses.
Source: https://www.hotrod.com/how-to/e-turbo-electric-assist-turbocharger/photos/
Step 3: From Validation to Year-Round Performance Optimization
With optical and thermal simulations optimized, the next crucial step is validation—ensuring that simulation predictions align with real-world performance. While numerical models provide valuable insights, they must be compared against experimental data to confirm their accuracy and reliability. Once validated, these models can be used to forecast year-round efficiency under varying meteorological conditions. This allows engineers to optimize solar collector performance dynamically, ensuring maximum energy capture across seasons, geographic locations, and operating conditions.
Year-Round Simulations: Predicting Performance in Real-Weather Conditions
Even with validated simulations, solar collector efficiency fluctuates due to seasonal changes. Real-weather simulations integrate actual meteorological data to forecast long-term performance and optimize operational strategies dynamically.
How Does Year-Round Simulation Work?
1.Hourly & Daily Weather Data Integration:
- Models incorporate solar radiation, ambient temperature, wind speed, and seasonal variations.
- Allows engineers to predict efficiency fluctuations throughout the year.
2.Dynamic System Adjustments:
- Parameters such as collector tilt angles, operating flow rates, and insulation strategies are optimized.
- Ensures adaptation to changing environmental conditions.
3.Computational Efficiency:
- Due to the simplicity and scalability of these models, running year-long simulations is fast and computationally inexpensive.
Why is Year-Round Simulation Powerful?
- Optimizes Seasonal Performance: Ensures maximum energy yield throughout the year.
- Predicts Energy Savings & ROI: Helps evaluate return on investment for large-scale solar deployments.
- Adapts to Various Climates: Enables real-time adjustments for different geographic locations.
Real-World Applications of CPC Simulation & Validation
Several certified research studies have demonstrated the effectiveness of optical and thermal analysis combined with validation techniques. Below are three key case studies showcasing CPC-based solar thermal applications in different industries.
CPC-Driven Solar Process Heat System
This study modeled and validated a CPC collector coupled with a multiple-port storage tank, aiming to improve thermal energy storage and system performance. The goal was to understand how collector efficiency, thermal stratification, and heat losses affected overall system operation.
Key Findings:
- Optical Analysis: Used SolTrace to evaluate sunlight absorption across the collector surface.
- Thermal Analysis: Simulated heat transfer under different flow rates to optimize thermal efficiency.
- Validation:Achieved 5.01% deviation in optical efficiency and 0.24% deviation in collector efficiency, confirming model accuracy.
- Impact: Improved solar process heat utilization, increasing efficiency for industrial applications.
Triple-Function CPC Collector for Hybrid Solar Systems
This research focused on designing a hybrid CPC collector capable of generating both thermal energy and electricity in a single system. The challenge was to balance thermal absorption and electrical efficiency by optimizing heat transfer to the PV cells.
Key Findings:
- Optical Analysis: Ray-tracing simulations optimized light concentration on PV cells and thermal absorbers.
- Thermal Analysis: Modeled heat transfer for both air and water circuits in the hybrid system.
- Validation: The model achieved less than 3.2% deviation, confirming accuracy in predicting hybrid system performance.
- Impact: Enabled the design of high-efficiency hybrid solar systems, improving both thermal and electrical output.

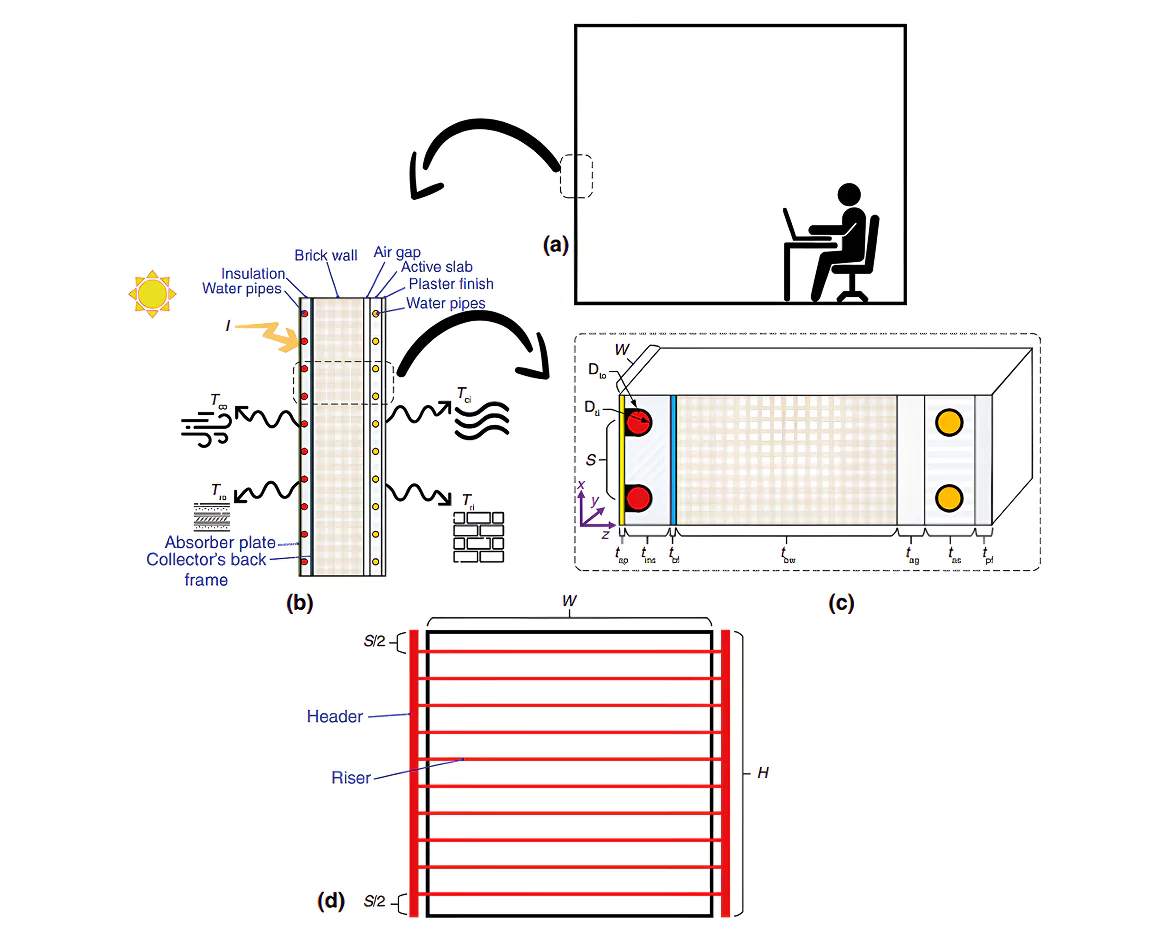

Integrated Radiant Wall System with Solar Collector
This study focused on integrating a solar collector with a radiant wall heating system, designed to improve energy efficiency in buildings. The objective was to analyze solar heat absorption, thermal storage, and heat distribution for space heating applications.
Key Findings:
- Optical Analysis: Evaluated solar heat absorption across a wall-integrated CPC system.
- Thermal Analysis: Applied finite volume heat transfer modeling to predict temperature distribution and nighttime heating capacity.
- Validation: The model achieved 0.638% maximum deviation, proving high accuracy in predicting radiant heat transfer efficiency.
- Impact: Reduced heat loss by up to 21.2 W/m², demonstrating significant energy savings for sustainable building designs.
Conclusion: A Comprehensive Approach to Solar Collector Optimization
By combining optical analysis, thermal simulations, and real-world validation, engineers can develop highly efficient CPC solar collectors tailored for industrial heating, hybrid energy, and sustainable building applications.
This approach ensures that solar thermal systems are not only optimized for peak efficiency but also validated and tested under real-world conditions. As advancements in AI and hybrid renewable technologies continue, CPC collectors will play an even greater role in future energy systems, paving the way for cleaner and more efficient solar energy utilization.
